MAX5003 - High-Voltage PWM Power-Supply Controller

Product Overview

Maxim

Part number	MAX5003
Manufacturer	Maxim
File Size	212.78 KB
Description	High-Voltage PWM Power-Supply Controller
Datasheet	MAX5003 Datasheet

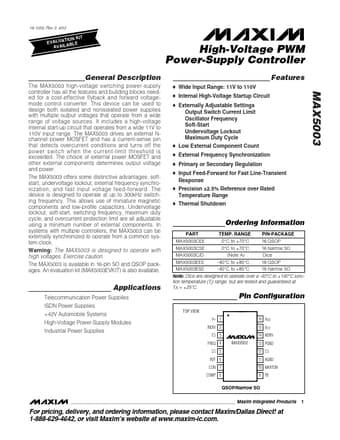

Additional preview pages of the MAX5003 datasheet.

The MAX5003 high-voltage switching power-supply controller has all the

and building blocks needed for a cost-effective flyback and forward voltagemode control converter. This device can be used to design both isolated and nonisolated power supplies with multiple output voltages that operate from a wide range of voltage sources. It includes a high-voltage internal start-up circuit that operates from a wide 11V to 110V input range. The MAX5003 drives an external Nchannel power MOSFET and has a current-sense pin that detects overcurrent conditions and turns off the po.
