MAX5803 - 8-/10-/12-Bit DACs

Product Overview

Maxim

Datasheet Details

Part number	MAX5803
Manufacturer	Maxim
File Size	1.78 MB
Description	8-/10-/12-Bit DACs
Datasheet	MAX5803 Datasheet

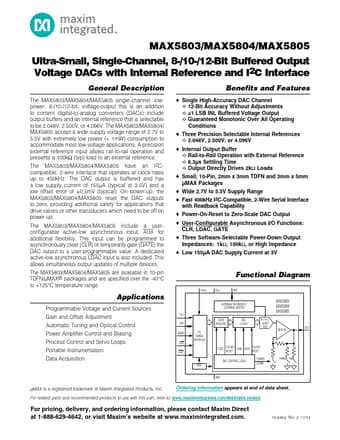

Additional preview pages of the MAX5803 datasheet.

Product details

Description

The MAX5803/MAX5804/MAX5805 single-channel, lowpower, 8-/10-/12-bit, voltage-output digital-to-analog converters (DACs) include output buffers and an internal reference that is selectable to be 2.048V, 2.500V, or 4.096V.

Features

S Single High-Accuracy DAC Channel.
12-Bit Accuracy Without Adjustments.
±1 LSB INL Buffered Voltage Output.
Guaranteed Monotonic Over All Operating Conditions S Three Precision Selectable Internal References.
2.048V, 2.500V, or 4.096V S Internal Output Buffer.
Rail-to-Rail Operation with External Reference.
6.3µs Settling Time.
Output Directly Drives 2kI Loads S Small, 10-Pin, 2mm x 3mm TDFN and 3mm x 5mm µMAX Packages S Wide 2.7V to 5.5V Supply Range S.
