MAX5813

Ultra-Small Quad-Channel 8-/10-/12-Bit Buffered Output DACs

MAX5813 Features

* S Four High-Accuracy DAC Channels

* 12-Bit Accuracy Without Adjustment

* ±1 LSB INL Buffered Voltage Output

* Guaranteed Monotonic Over All Operating Conditions

* Independent Mode Settings for Each DAC S Three Precision Selectable Internal References

* 2.048V, 2.500V, or

MAX5813 General Description

The MAX5813/MAX5814/MAX5815 4-channel, low-power, 8-/10-/12-bit, voltage-output digital-to-analog converters (DACs) include output buffers and an internal reference that is selectable to be 2.048V, 2.500V, or 4.096V. The MAX5813/MAX5814/MAX5815 accept a wide supply voltage range of 2.7V to 5.5V with.

MAX5813 Datasheet (3.95 MB)

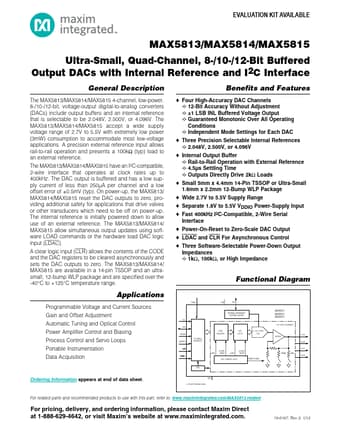

Preview of MAX5813 PDF

Datasheet Details

Part number:

MAX5813

Manufacturer:

Maxim Integrated ↗ Products

File Size:

3.95 MB

Description:

Ultra-small quad-channel 8-/10-/12-bit buffered output dacs.
EVALUATION KIT AVAILABLE MAX5813/MAX5814/MAX5815 Ultra-Small, Quad-Channel, 8-/10-/12-Bit Buffered Output DACs with Internal Reference and I2C Interf.
