MAX5866

60Msps Analog Front End

MAX5866 Features

* Integrated Dual, 8-Bit ADCs and Dual, 10-Bit DACs

* Ultra-Low Power 80mW at fCLK = 60MHz (Rx Mode) 52.5mW at fCLK = 60MHz (Tx Mode) Low-Current Idle and Shutdown Modes

* Excellent Dynamic Performance 48dB SINAD at fIN = 25MHz (ADC) 64.2dBc SFDR at fOUT = 6MHz (DAC)

MAX5866 Datasheet (763.63 KB)

Preview of MAX5866 PDF

Datasheet Details

Part number:

MAX5866

Manufacturer:

Maxim Integrated ↗ Products

File Size:

763.63 KB

Description:

60msps analog front end.

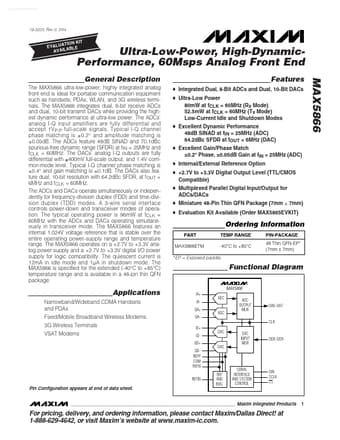

www.DataSheet4U.com 19-3223; Rev 0; 2/04 KIT ATION EVALU E L B A AVAIL Ultra-Low-Power, High-DynamicPerformance, 60Msps Analog Front End General De.
