MAX630 Datasheet, Regulator, Maxim

MAX630 Features

  • Regulator High Efficiency
      –85% (typ) 70µA Typical Operating Current 1µA Maximum Quiescent Current 2.0V to 16.5V Operation 525mA (Peak) Onboard Drive Capability ±1.5% Output Voltage

PDF File Details

Part number:

MAX630

Manufacturer:

Maxim

File Size:

249.77kb

Download:

📄 Datasheet

Description:

Cmos micropower step-up switching regulator. Maxim’s MAX630 and MAX4193 CMOS DC-DC regulators are designed for simple, efficient, minimum-size DC-DC converter circuits in the 5mW

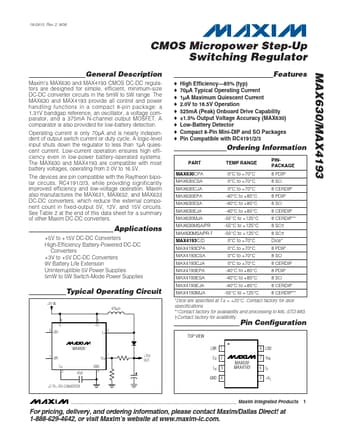

Datasheet Preview: MAX630 📥 Download PDF (249.77kb)
Page 2 of MAX630 Page 3 of MAX630

MAX630 Application

  • Applications +5V to +15V DC-DC Converters High-Efficiency Battery-Powered DC-DC Converters +3V to +5V DC-DC Converters 9V Battery Life Extension Uni
