MAX6478, MAX - 300mA LDO Linear Regulators with Internal Microprocessor Reset Circuit

Name: MAX6478
SKU: MAX6478-443650

Maxim

The MAX6478 by Maxim is a 300mA LDO Linear Regulators with Internal Microprocessor Reset Circuit. Below is the official datasheet preview.

📥 Download Datasheet

MAX6478 300mA LDO Linear Regulators with Internal Microprocessor Reset Circuit by Maxim - Datasheet Preview — Official preview page of the **MAX6478** 300mA LDO Linear Regulators with Internal Microprocessor Reset Circuit datasheet (Maxim).

Datasheet Details

Part number	MAX6478, MAX
Manufacturer	Maxim
File Size	394.30 KB
Description	300mA LDO Linear Regulators with Internal Microprocessor Reset Circuit
Datasheet	MAX-6469.pdf
Note	This datasheet PDF includes multiple part numbers: MAX6478, MAX. Please refer to the document for exact specifications by model.

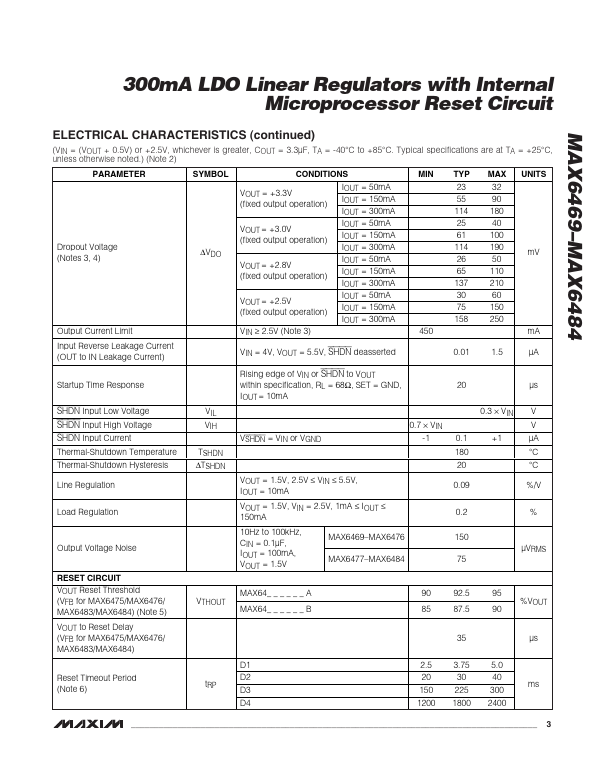

Additional preview pages of the MAX6478 datasheet.

MAX6478 Product details

Features

o 3 ✕ 3 UCSP, 6-Pin SOT23, and 8-Pin QFN Packages o Preset +1.5V to +3.3V Output (100mV Increments) o SET Pin for Adjustable Output Voltage o 75µVRMS LDO Output Voltage Noise (MAX6477.
MAX6484) o ±2.0% Accuracy Over Temperature o Guaranteed 300mA Output Current o Low Dropout Voltage 55mV at 150mA 114mV at 300mA o 82µA Supply Current, 0.1µA Shutdown Current o Input Reverse Current, Thermal and Short-Circuit Protection o Microprocessor Reset with Four Timeout Options o Push-Pull or Open-Dra.
