MAX690 - Microprocessor Supervisory

Maxim

📥 Download Datasheet

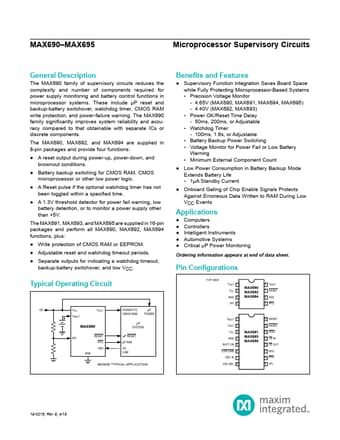

MAX690 Datasheet Preview — Preview of MAX690 PDF

Datasheet Details

Part number: MAX690
Manufacturer: Maxim
File Size: 501.31 KB
Datasheet: MAX690_MaximIntegratedProducts.pdf
Description: Microprocessor Supervisory

MAX690 Product details

Description

The MAX690 family of supervisory circuits reduces the complexity and number of components required for power supply monitoring and battery control functions in microprocessor systems.

Features

Supervisory Function Integration Saves Board Space while Fully Protecting Microprocessor-Based Systems.
Precision Voltage Monitor -- 4.65V (MAX690, MAX691, MAX694, MAX695) -- 4.40V (MAX692, MAX693).
Power OK/Reset Time Delay -- 50ms, 200ms, or Adjustable.
Watchdog Timer -- 100ms, 1.6s, or Adjustable.
Battery Backup Power Switching.
Voltage Monitor for Power Fail or Low Battery Warning.
Minimum External Component Count.
