MAX6902

I2C-Compatible RTC

Maxim

MAX6902 Features

* o Real-Time Clock Counts Seconds, Minutes, Hours, Day of Week, Date of Month, Month, Year, and Century o Leap-Year Compensation Valid up to Year 2100 o +2V to +5.5V Wide Operating Voltage Range o SPI Interface: 4MHz at 5V; 1MHz at 2V o 31 x 8-Bit SRAM for Scratchpad Data Storage o Uses Standard 32.7

MAX6902 General Description

The MAX6902 SPI™-compatible real-time clock contains a real-time clock/calendar and 31 x 8 bits of static random-access memory (SRAM). The real-time clock/calendar provides seconds, minutes, hours, day, date, month, year, and century information. A time/date programmable polled ALARM is included in .

MAX6902 Datasheet (187.99 KB)

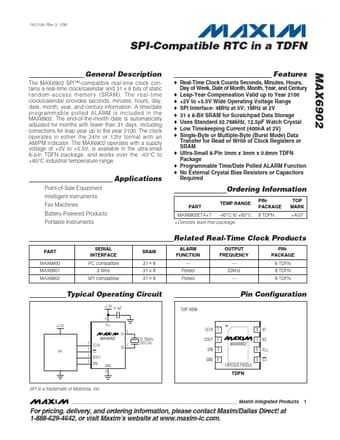

MAX6902 Datasheet Preview — Preview of MAX6902 PDF

Datasheet Details

Part number:

MAX6902

Manufacturer:

Maxim

File Size:

187.99 KB

Description:

I2c-compatible rtc.
