MAX705 - Low-Cost / uP Supervisory Circuits

Product Overview

Maxim

Datasheet Details

Part number	MAX705
Manufacturer	Maxim
File Size	1.00 MB
Description	Low-Cost / uP Supervisory Circuits
Datasheet	MAX705 Datasheet

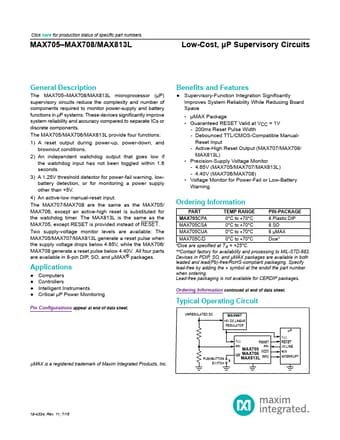

Additional preview pages of the MAX705 datasheet.

Product details

Description

The MAX705 MAX708/MAX813L microprocessor (µP) supervisory circuits reduce the complexity and number of components required to monitor power-supply and battery functions in µP systems.

Features

Supervisory-Function Integration Significantly Improves System Reliability While Reducing Board Space.
μMAX Package.
Guaranteed RESET Valid at VCC = 1V -- 200ms Reset Pulse Width -- Debounced TTL/CMOS-Compatible Manual- Reset Input -- Active-High Reset Output (MAX707/MAX708/ MAX813L).
Precision-Supply Voltage Monitor -- 4.65V (MAX705/MAX707/MAX813L) -- 4.40V (MAX706/MAX708).
Voltage Monitor for Power-Fail or Low-Battery Warning Ordering Informa.
