MX7575 - CMOS / uP-Compatible / 5s/10s / 8-Bit ADCs

This page provides the datasheet information for the MX7575, a member of the MX7 CMOS / uP-Compatible / 5s/10s / 8-Bit ADCs family.

Datasheet Summary

Description

Maxim’s MX7575/MX7576 are high-speed (5µs/10µs), microprocessor (µP) compatible, 8-bit analog-to-digital converters (ADCs).

The MX7575 provides an on-chip track/hold function that allows full-scale signals up to 50kHz (386mV/µs slew rate) to be acquired and digitized accurately.

Features

  • o Fast Conversion Time: 5µs (MX7575) 10µs (MX7576) MX7575/MX7576 o Built-In Track/Hold Function (MX7575) o Low Total Unadjusted Error (±1LSB max) o 50kHz Full-Power Signal Bandwidth (MX7575) o Single +5V Supply Operation o 8-Bit µP Interface o 100ns Data-Access Time o Low Power: 15mW o Small-Footprint Packages ______________Ordering Information PART MX7575JN TEMP. RANGE 0°C to +70°C PIN-.

📥 Download Datasheet

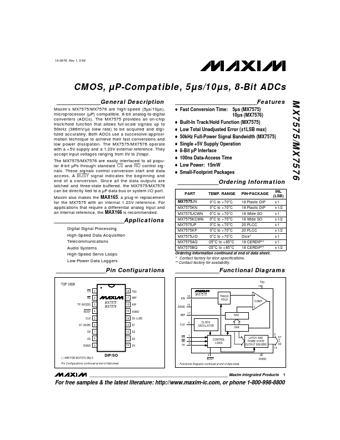

Datasheet preview – MX7575

Datasheet Details

Part number MX7575
Manufacturer Maxim
File Size 105.11 KB
Description CMOS / uP-Compatible / 5s/10s / 8-Bit ADCs
Datasheet download datasheet MX7575 Datasheet
Additional preview pages of the MX7575 datasheet.

📁 Similar Datasheet

  • MX7549 - CMOS Dual 12-Bit Double Buffered uP-Compatible DAC (Maxim Integrated Products)
  • MX7219T - 4.5ns Rail-to-Rail High-Speed Comparator (MAXINMICRO)
  • MX7224 - CMOS 8-Bit DAC (Maxim Integrated Products)
  • MX7225 - (MX7225 / MX7226) CMOS Quad 8-Bit D/A Converters (Maxim Integrated Products)
  • MX7226 - (MX7225 / MX7226) CMOS Quad 8-Bit D/A Converters (Maxim Integrated Products)
  • MX74610 - Reverse Polarity Protection Smart Diode Controller (MAXINMICRO)
  • MX74VHC04 - HEX INVERTER (Motorola)
Other Datasheets by Maxim
  • MX7575AQ - CMOS / uP-Compatible / 5s/10s / 8-Bit ADCs
  • MX7575BQ - CMOS / uP-Compatible / 5s/10s / 8-Bit ADCs
  • MX7575D - CMOS / uP-Compatible / 5s/10s / 8-Bit ADCs
  • MX7575J - CMOS / uP-Compatible / 5s/10s / 8-Bit ADCs
  • MX7575JCWN - CMOS / uP-Compatible / 5s/10s / 8-Bit ADCs
  • MX7575JEQP - CMOS / uP-Compatible / 5s/10s / 8-Bit ADCs
  • MX7575JEWN - CMOS / uP-Compatible / 5s/10s / 8-Bit ADCs
  • MX7575JN - CMOS / uP-Compatible / 5s/10s / 8-Bit ADCs

Full PDF Text Transcription

Click to expand full text
19-0876; Rev 1; 5/96 CMOS, µP-Compatible, 5µs/10µs, 8-Bit ADCs _______________General Description Maxim’s MX7575/MX7576 are high-speed (5µs/10µs), microprocessor (µP) compatible, 8-bit analog-to-digital converters (ADCs). The MX7575 provides an on-chip track/hold function that allows full-scale signals up to 50kHz (386mV/µs slew rate) to be acquired and digitized accurately. Both ADCs use a successive-approximation technique to achieve their fast conversions and low power dissipation. The MX7575/MX7576 operate with a +5V supply and a 1.23V external reference. They accept input voltages ranging from 0V to 2VREF. The MX7575/MX7576 are easily interfaced to all popular 8-bit µPs through standard CS and RD control signals. These signals control conversion start and data access.
Published: |
