MX7576KP, MX7 - CMOS / uP-Compatible / 5s/10s / 8-Bit ADCs

Maxim

The MX7576KP by Maxim is a CMOS / uP-Compatible / 5s/10s / 8-Bit ADCs. Below is the official datasheet preview.

Datasheet Details

Part number	MX7576KP, MX7
Manufacturer	Maxim
File Size	105.11 KB
Description	CMOS / uP-Compatible / 5s/10s / 8-Bit ADCs
Datasheet	MX7-575.pdf
Note	This datasheet PDF includes multiple part numbers: MX7576KP, MX7. Please refer to the document for exact specifications by model.

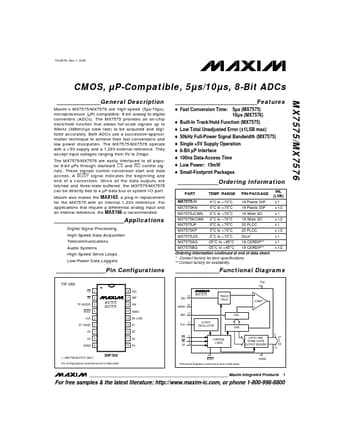

Additional preview pages of the MX7576KP datasheet.

Maxim’s MX7575/MX7576 are high-speed (5µs/10µs), microprocessor (µP) compatible, 8-bit analog-to-digital converters (ADCs).

o Fast Conversion Time: 5µs (MX7575) 10µs (MX7576) MX7575/MX7576 o Built-In Track/Hold Function (MX7575) o Low Total Unadjusted Error (±1LSB max) o 50kHz Full-Power Signal Bandwidth (MX7575) o Single +5V Supply Operation o 8-Bit µP Interface o 100ns Data-Access Time o Low Power: 15mW o Small-Footprint Packages ______________Ordering Information PART MX7575JN TEMP. RANGE 0°C to +70°C PIN-.
