54HC4050 - CMOS Logic Hex Non-Inverting Buffers

Maxwell

The 54HC4050 by Maxwell is a CMOS Logic Hex Non-Inverting Buffers. Below is the official datasheet preview.

📥 Download Datasheet

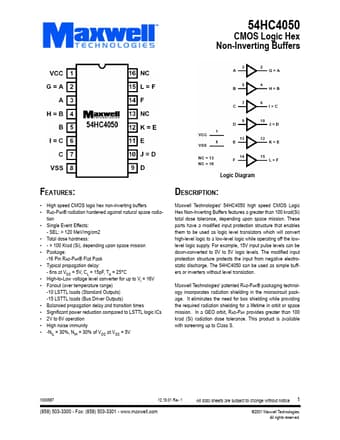

54HC4050 CMOS Logic Hex Non-Inverting Buffers by Maxwell - Datasheet Preview — Official preview page of the 54HC4050 CMOS Logic Hex Non-Inverting Buffers datasheet (Maxwell).

Datasheet Details

Part number	54HC4050
Manufacturer	Maxwell
File Size	121.45 KB
Description	CMOS Logic Hex Non-Inverting Buffers
Datasheet	54HC4050_Maxwell.pdf
Additional preview pages of the 54HC4050 datasheet.

54HC4050 Product details

Description

Maxwell Technologies' 54HC4050 high speed CMOS Logic Hex Non-Inverting Buffers

Features

High speed CMOS logic hex non-inverting buffers.
RAD-PAK® radiation hardened against natural space radiation.
Single Event Effects: - SEL: > 120 MeV/mg/cm2.
Total dose hardness:.
- > 100 Krad (Si), depending upon space mission.
Package: -16 Pin RAD-PAK® Flat Pack.
Typical propagation delay: - 6ns at VCC = 5V, CL = 15pF, TA = 25°C.
High-to-Low voltage level converter for up to VI = 16V.
Fanout (over temperature ran.
