TDA3009 - 25 W + 25 W Stereo Amplifier

Datasheet Summary

Features

  • The integrated circuits TDA3009 S and TDA3009 M are dual audio power amplifiers for high quality audio equipment such as Hi - Fi - Stereo - amplifiers, TV amplifiers and high power bridge amplifiers. The TDA3009 M is specially designed for bridge mode.

📥 Download Datasheet

Datasheet preview – TDA3009

Datasheet Details

Part number TDA3009
Manufacturer Megaxess
File Size 58.12 KB
Description 25 W + 25 W Stereo Amplifier
Datasheet download datasheet TDA3009 Datasheet
Additional preview pages of the TDA3009 datasheet.

📁 Similar Datasheet

  • TDA3047 - INFRARED RECEIVER (NXP)
  • TDA3048 - INFRARED RECEIVER (NXP)
  • TDA3081 - SEVEN-TRANSISTOR ARRAYS (Philips)
  • TDA3082 - SEVEN-TRANSISTOR ARRAYS (Philips)
  • TDA3190 - COMPLETE TV SOUND CHANNEL (ST Microelectronics)
  • TDA3300 - TDA3300 (ETC)
  • TDA3301B - TV COLOR PROCESSOR (Motorola)
  • TDA3303 - TV COLOR PROCESSOR (Motorola)
  • TDA3330 - TV Color Processor (Motorola)
  • TDA3410 - DUAL LOW NOISE TAPE PREAMPLIFIER (SGS)
Other Datasheets by Megaxess
  • TDA3006 - Stereo Earphone Amplifier

Full PDF Text Transcription

Click to expand full text

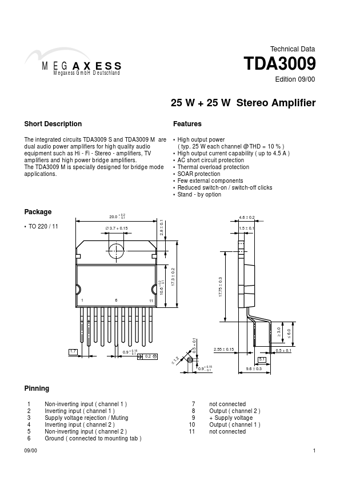

MEGAXESS Megaxess GmbH Deutschland Technical Data TDA3009 Edition 09/00 25 W + 25 W Stereo Amplifier Short Description Features The integrated circuits TDA3009 S and TDA3009 M are dual audio power amplifiers for high quality audio equipment such as Hi - Fi - Stereo - amplifiers, TV amplifiers and high power bridge amplifiers. The TDA3009 M is specially designed for bridge mode applications. • High output power ( typ. 25 W each channel @ THD = 10 % ) • High output current capability ( up to 4.5 A ) • AC short circuit protection • Thermal overload protection • SOAR protection • Few external components • Reduced switch-on / switch-off clicks • Stand - by option Package • TO 220 / 11 20.0 + - 0.2 0.1 ∅ 3.7 + 0.15 4.6 ± 0.2 1.5 ± 0.1 2.8 ± 0.1 17.3 ± 0.2 17.75 ± 0.3 0.2 0.
