TDA3190 - COMPLETE TV SOUND CHANNEL

Datasheet Summary

Description

The TDA3190 can give an output power of 4.2 W (d = 10 %) into a 16 Ω load at VS = 24 V, or 1.5 W (d = 10 %) into an 8 Ω load at VS = 12 V.

📥 Download Datasheet

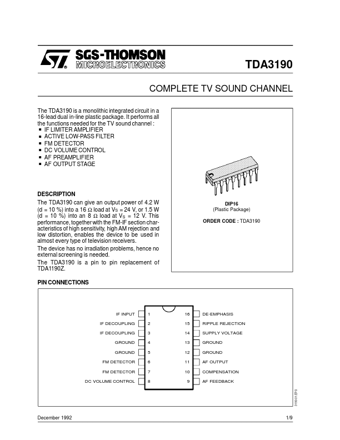

Datasheet preview – TDA3190

Datasheet Details

Part number TDA3190
Manufacturer STMicroelectronics
File Size 188.26 KB
Description COMPLETE TV SOUND CHANNEL
Datasheet download datasheet TDA3190 Datasheet
Additional preview pages of the TDA3190 datasheet.

📁 Similar Datasheet

  • TDA3006 - Stereo Earphone Amplifier (Megaxess)
  • TDA3009 - 25 W + 25 W Stereo Amplifier (Megaxess)
  • TDA3047 - INFRARED RECEIVER (NXP)
  • TDA3048 - INFRARED RECEIVER (NXP)
  • TDA3081 - SEVEN-TRANSISTOR ARRAYS (Philips)
  • TDA3082 - SEVEN-TRANSISTOR ARRAYS (Philips)
  • TDA3300 - TDA3300 (ETC)
  • TDA3301B - TV COLOR PROCESSOR (Motorola)
  • TDA3303 - TV COLOR PROCESSOR (Motorola)
  • TDA3330 - TV Color Processor (Motorola)
Other Datasheets by ST Microelectronics
  • TDA3420 - DUAL VERY LOW NOISE PREAMPLIFIER
  • TDA3420D - DUAL VERY LOW NOISE PREAMPLIFIER
  • TDA3562A - PAL/NTSC ONE-CHIP DECODER
  • TDA0161 - PROXIMITY DETECTORS
  • TDA1151 - MOTOR SPEED REGULATOR
  • TDA1170N - LOW-NOISE TV VERTICAL DEFLECTION SYSTEM
  • TDA1170S - TV VERTICAL DEFLECTION
  • TDA1175P - LOW-NOISE VERTICAL DEFLECTION SYSTEM

Full PDF Text Transcription

Click to expand full text
TDA3190 COMPLETE TV SOUND CHANNEL The TDA3190 is a monolithic integrated circuit in a 16-lead dual in-line plastic package. It performs all the functions needed for the TV sound channel : IF LIMITER AMPLIFIER ACTIVE LOW-PASS FILTER FM DETECTOR DC VOLUME CONTROL AF PREAMPLIFIER AF OUTPUT STAGE . . . . . . DESCRIPTION The TDA3190 can give an output power of 4.2 W (d = 10 %) into a 16 Ω load at VS = 24 V, or 1.5 W (d = 10 %) into an 8 Ω load at VS = 12 V. This performance, together with the FM-IF section characteristics of high sensitivity, high AM rejection and low distortion, enables the device to be used in almost every type of television receivers. The device has no irradiation problems, hence no external screening is needed. The TDA3190 is a pin to pin replacement of TDA1190Z.
