MW322522 Datasheet - Meisongbei

Surface-Mount Molded Wound Chip Inductors

MW322522 Features

* Monolithic inorganic material construction

* Closed magnetic circuit avoids crosstalk

* S.M.T. Type

* Suitable for flow and eflow soldering.

* Shapes and dimensions follow E.I.A.spec

* Available in various sizes.

* High realiability

* RoHS compliant Applications

MW322522 Datasheet (77.58 KB)

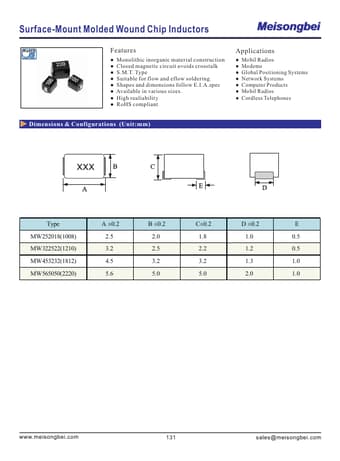

Preview of MW322522 PDF

Datasheet Details

Part number:

MW322522

Manufacturer:

Meisongbei

File Size:

77.58 KB

Description:

Surface-mount molded wound chip inductors.
