MW39962AE Datasheet - Panasonic Semiconductor

Diagonal 11 mm (type-2/3) FIT CCD Area Image Sensor

MW39962AE Features

* high sensitivity, low noise, broad dynamic range and low smear level. The device has a total of 2 182 860 pixels (2 010 horizontal × 1 086 vertical) and provides stable and clear images with a resolution of 1 100 horizontal and 730 vertical TV lines. Part Number CCD size System HDTV Color or B/W B/W

MW39962AE General Description

Pin No. Symbol 1 2 3 4 5 6 7 8 9 10 2 PW RG RD OD VO LG HL H1 H2 PW P-well Reset gate Reset drain Output drain Video output Output load transistor gate Horizontal CCD final gate Horizontal CCD gate 1 Horizontal CCD gate 2 P-well Description Pin No. Symbol 11 12 13 14 15 16 17 18 19 20 SMD00016AEC .

MW39962AE Datasheet (133.42 KB)

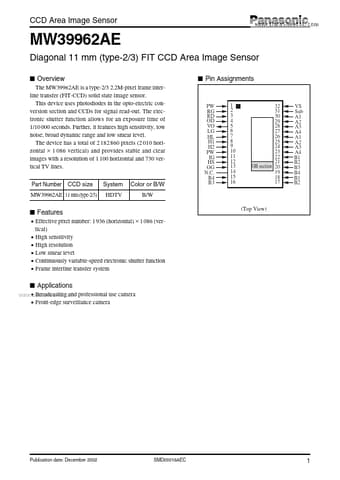

Preview of MW39962AE PDF

Datasheet Details

Part number:

MW39962AE

Manufacturer:

Panasonic Semiconductor

File Size:

133.42 KB

Description:

Diagonal 11 mm (type-2/3) fit ccd area image sensor.
CCD Area Image Sensor MW39962AE Diagonal 11 mm (type-2/3) FIT CCD Area Image Sensor Overview The MW39962AE is a type-2/3 2.2M-pixel frame inter.
