MLX90109 - 125kHz RFID Transceiver

Melexie

📥 Download Datasheet

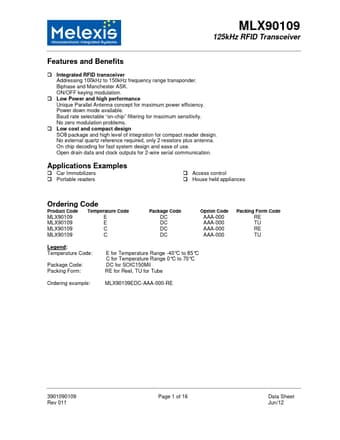

MLX90109 Datasheet Preview — Preview of MLX90109 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MLX90109
Manufacturer	Melexie
File Size	295.54 KB
Description	125kHz RFID Transceiver
Datasheet	MLX90109-Melexie.pdf

MLX90109 Product details

Features

Integrated RFID transceiver Addressing 100kHz to 150kHz frequency range transponder. Biphase and Manchester ASK. ON/OFF keying modulation. Low Power and high performance Unique Parallel Antenna concept for maximum power efficiency. Power down mode available. Baud rate selectable “on-chip” filtering for maximum sensitivity. No zero modulation problems. Low cost and compact design SO8 package and high level of integration for compact reader design. No external quartz reference required, only 2 re.
