IQF-25L Datasheet - Merrimac Industries

IQF-25L I&Q NETWORKS

IQF-25L Series I&Q NETWORKS 1.5 to 3 GHz / 10 % Bandwidth / In-Circuit, Voltage Controlled Phase Balance / Hi-Rel Hermetic Pkg PRINCIPAL SPECIFICATIONS Model Number IQF-25L- B LO Frequency, fo, MHz 1500 - 3000 † Bandwidth RF Input 10% of fo For complete Model Number replace with desired LO Frequency in MHz. GENERAL SPECIFICATIONS RF and LO Input Characteristics Impedance: 50 Ω nom. VSWR: 1.5:1 max. RF Power Level: 0 dBm nom. LO Power Level: +10 dBm nom. I & Q .

IQF-25L Features

* an in-circuit, voltage controlled phase balance that allows fine adjustment of phase. This feature provides accuracy not previously attainable in a comparably small package. In addition, the voltage controlled phase balance input facilitates closed loop, servo operation using the phase adjustment in

IQF-25L_MerrimacIndustries.pdf

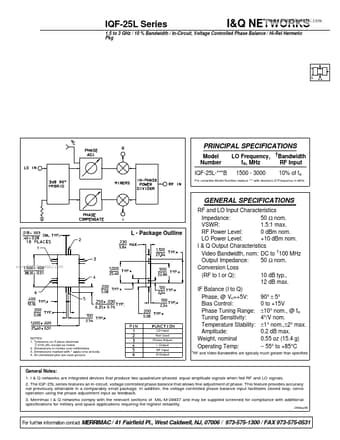

Preview of IQF-25L PDF

Datasheet Details

Part number:

IQF-25L

Manufacturer:

Merrimac Industries

File Size:

139.11 KB

Description:

I&q networks.
