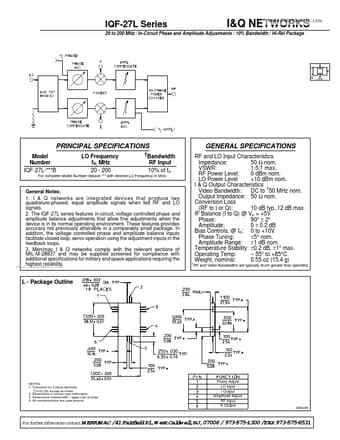

IQF-27L Series I&Q NETWORKS 20 to 200 MHz / In-Circuit Phase and Amplitude Adjustments / 10% Bandwidth / Hi-Rel Package PRINCIPAL SPECIFICATIONS Model Number IQF-27L- B LO Frequency fo, MHz 20 - 200 † GENERAL SPECIFICATIONS RF and LO Input Characteristics Impedance: 50 Ω nom. VSWR: 1.5:1 max. RF Power Level: 0 dBm nom. LO Power Level +10 dBm nom. I & Q Output Characteristics Video Bandwidth: DC to †50 MHz nom. Output Impedance: 50 Ω nom. Conversion Loss (RF to I or Q): 10 dB ty.

IQF-27L Features

* in-circuit, voltage controlled phase and amplitude balance adjustments that allow fine adjustments when the device is in its normal operating environment. These features provides accuracy not previously attainable in a comparably small package. In addition, the voltage controlled phase and amplitude

IQF-27L Datasheet (129.78 KB)

IQF-27L Datasheet Preview — Preview of IQF-27L PDF

Datasheet Details

Part number:

IQF-27L

Manufacturer:

Merrimac Industries

File Size:

129.78 KB

Description:

I&q networks.
