MIC2982 - High-Voltage High-Current Source Driver Array

Micrel Semiconductor

📥 Download Datasheet

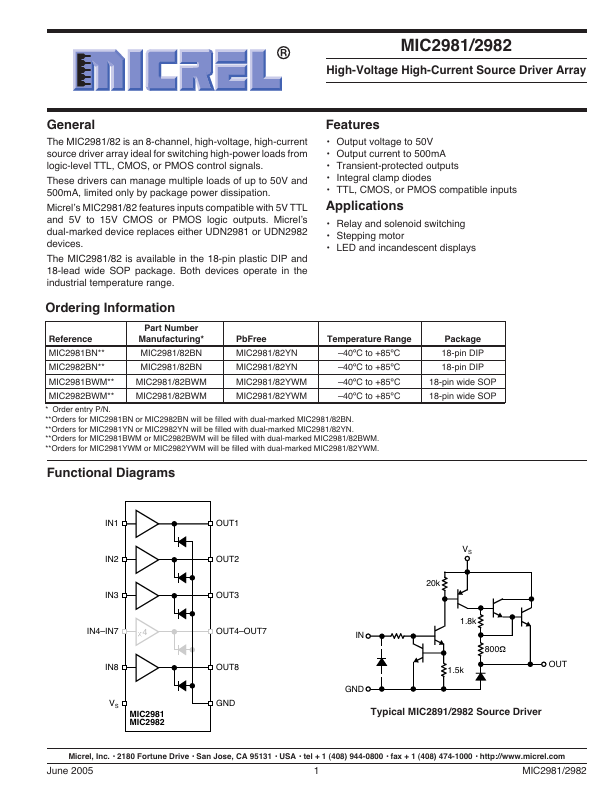

MIC2982 Datasheet Preview — Preview of MIC2982 PDF

Datasheet Details

Part number	MIC2982
Manufacturer	Micrel Semiconductor
File Size	437.48 KB
Description	High-Voltage High-Current Source Driver Array
Datasheet	MIC2982-MicrelSemiconductor.pdf

MIC2982 Product details

Description

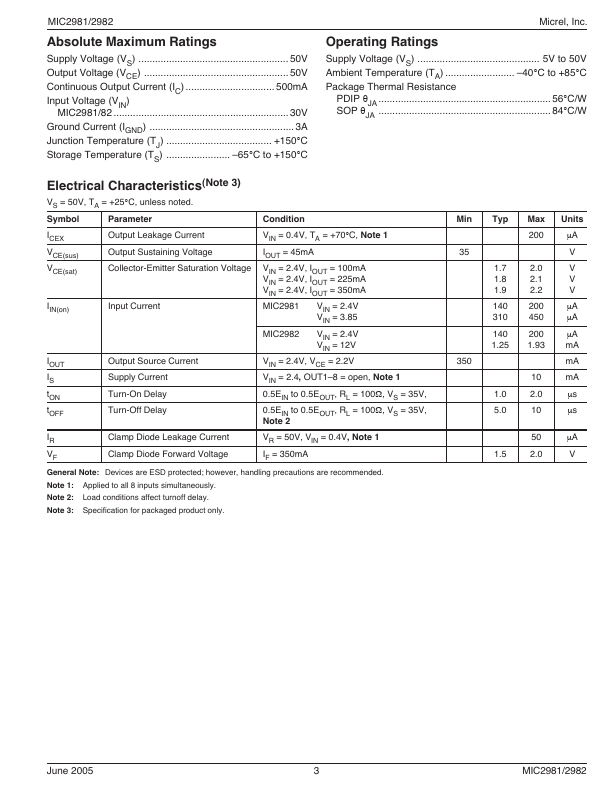

Pin No. 8 9 10 11 18 Pin No.IN1 IN8 VS GND OUT8 OUT1 Pin Name Pin Function Input 1 through Input 8: Base drive to driver input transistor.Supply Input Ground Output 8 through Output 1: Emitter of Darlington driver output.MIC2981/2982 2 June 2005 MIC2981/2982 Absolute Maximum Ratings Supply Voltage (VS) 50V Output Voltage (VCE) 50V Continuous Output Current (IC) 500mA Input Voltage (VIN) MIC2981/82 30V Ground Current (IGND) 3A Junction Temperat

Features

inputs compatible with 5V TTL and 5V to 15V CMOS or PMOS logic outputs. Micrel’s dual-marked device replaces either UDN2981 or UDN2982 devices. The MIC2981/82 is available in the 18-pin plastic DIP and 18-lead wide SOP package. Both devices operate in the industrial temperature range. Features.
Output voltage to 50V.
Output current to 500mA.
Transient-protected outputs.
Integral clamp diodes.
TTL, CMOS, or PMOS compatible inputs.
