MIC39501, MIC39500 - 5A Low-Voltage Low-Dropout Regulator

Name: MIC39501
SKU: MIC39501-1254067

Micrel Semiconductor

📥 Download Datasheet

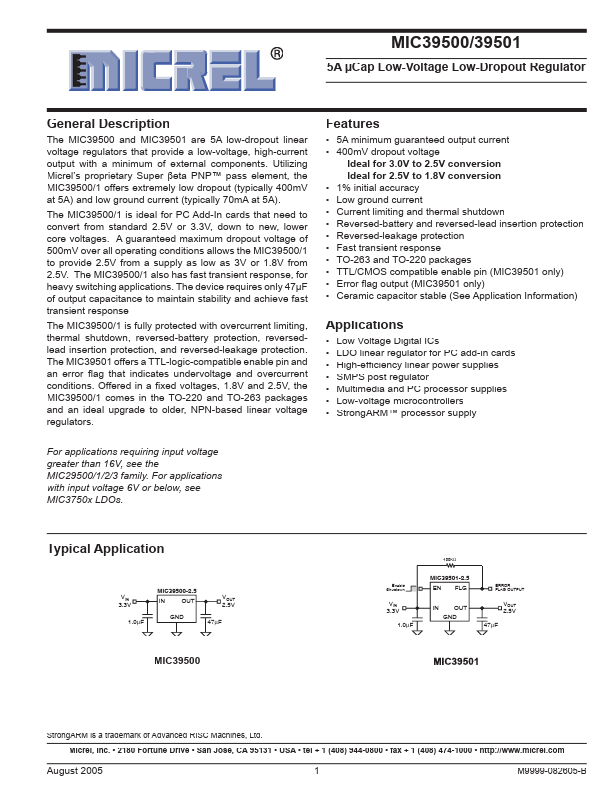

MIC39501 Datasheet Preview — This datasheet PDF includes multiple part numbers: MIC39501, MIC39500. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	MIC39501, MIC39500
Manufacturer	Micrel Semiconductor
File Size	1.93 MB
Description	5A Low-Voltage Low-Dropout Regulator
Datasheet	MIC39500-MicrelSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: MIC39501, MIC39500. Please refer to the document for exact specifications by model.

MIC39501 Product details

Description

The MIC39500 and MIC39501 are 5A low-dropout linear voltage regulators that provide a low-voltage, high-current output with a minimum of external components.

Features

5A minimum guaranteed output current.
400mV dropout voltage Ideal for 3.0V to 2.5V conversion Ideal for 2.5V to 1.8V conversion.
1% initial accuracy.
Low ground current.
Current limiting and thermal shutdown.
Reversed-battery and reversed-lead insertion protection.
Reversed-leakage protection.
Fast transient response.
TO-263 and TO-220 packages.
TTL/CMOS compatible enable pin (MIC39501 only).
Erro.
