MIC4421

9A-Peak Low-Side MOSFET Driver Bipolar/CMOS/DMOS Process

MIC4421 Features

* BiCMOS/DMOS Construction

* Latch-Up Proof: Fully Isolated Process is Inherently Immune to Any Latch-up.

* Input Will Withstand Negative Swing of Up to 5V

* Matched Rise and Fall Times 25ns

* High Peak Output Current 9A Peak

* Wide Operating Range 4

MIC4421 General Description

MIC4421 and MIC4422 MOSFET drivers are rugged, efficient, and easy to use. The MIC4421 is an inverting driver, while the MIC4422 is a non-inverting driver. Both versions are capable of 9A (peak) output and can drive the largest MOSFETs with an improved safe operating margin. The MIC4421/4422 accepts .

MIC4421 Datasheet (233.67 KB)

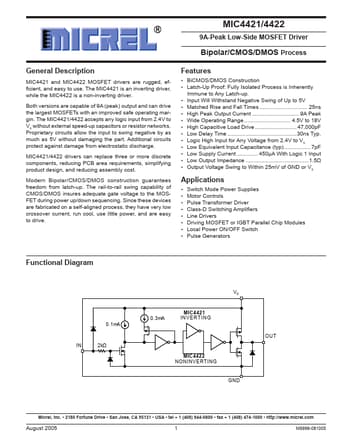

Preview of MIC4421 PDF

Datasheet Details

Part number:

MIC4421

Manufacturer:

Micrel Semiconductor

File Size:

233.67 KB

Description:

9a-peak low-side mosfet driver bipolar/cmos/dmos process.
