MIC4415, MIC4414 Low-Side MOSFET Driver

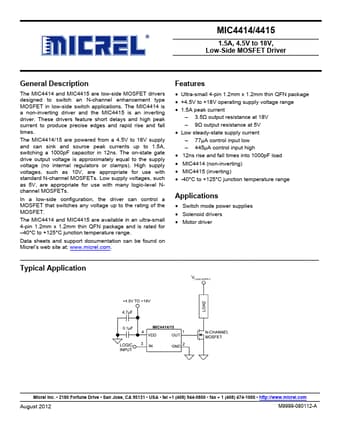

๐Ÿ“ฅ Download Datasheet  Datasheet Preview Page 1

Description

MIC4414/4415 1.5A, 4.5V to 18V, Low-Side MOSFET Driver General .
The MIC4414 and MIC4415 are low-side MOSFET drivers designed to switch an N-channel enhancement type MOSFET in low-side switch applications.

๐Ÿ“ฅ Download Datasheet

This datasheet PDF includes multiple part numbers: MIC4415, MIC4414. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
MIC4415, MIC4414
Manufacturer
Micrel
File Size
422.27 KB
Datasheet
MIC4414-Micrel.pdf
Description
Low-Side MOSFET Driver
Note
This datasheet PDF includes multiple part numbers: MIC4415, MIC4414.
Please refer to the document for exact specifications by model.

Features

* Ultra-small 4-pin 1.2mm x 1.2mm thin QFN package
* +4.5V to +18V operating supply voltage range
* 1.5A peak current
* 3.5โ„ฆ output resistance at 18V
* 9โ„ฆ output resistance at 5V
* Low steady-state supply current
* 77ยตA control input low
* 445ยตA contro
