MIC94083 (MIC94080 - MIC94085) RDSON 2A High Side Load Switch

The MIC94080/1/2/3/4/5 is a family of high-side load switches designed to operate from 1.7V to 5.5V input voltage. The load switch pass element is an internal 67mΩ RDSON P-Channel MOSFET which enables the device to support up to 2A of continuous current. Additionally, the load switch supports 1.5V l.

MIC94083 Features

* in a tiny 0.85mm x 0.85mm 4-pin Thin MLF® package. The MIC94080 and MIC94081 feature rapid turn on. The MIC94082 and MIC94083 provide a slew rate controlled softstart turn-on of 800µs, while the MIC94084 and MIC94085 provide a slew rate controlled soft-start turn-on of 120µs. The soft-start feature

MIC94085_MicrelSemiconductor.pdf

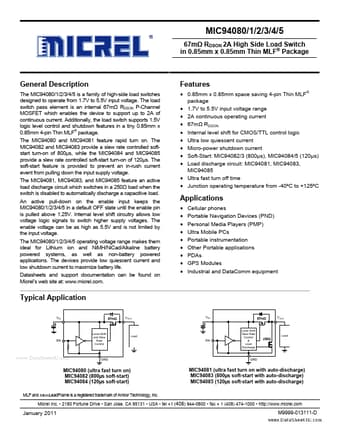

MIC94083 Datasheet Preview — This datasheet PDF includes multiple part numbers: MIC94083, MIC94085. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MIC94083, MIC94085

Manufacturer:

Micrel Semiconductor

File Size:

1.29 MB

Description:

(mic94080 - mic94085) rdson 2a high side load switch.

Note:

This datasheet PDF includes multiple part numbers: MIC94083, MIC94085.
Please refer to the document for exact specifications by model.
