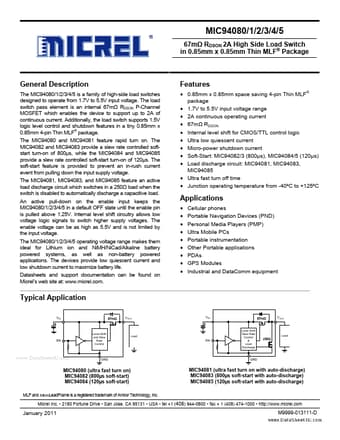

MIC94085 datasheet, switch equivalent, Micrel Semiconductor

MIC94085 Features and benefits

in a tiny 0.85mm x 0.85mm 4-pin Thin MLF® package. The MIC94080 and MIC94081 feature rapid turn on. The MIC94082 and MIC94083 provide a slew rate controlled softstart tur.

MIC94085 Application

The devices provide low quiescent current and low shutdown current to maximize battery life. Datasheets and support doc.

MIC94085 Description

The MIC94080/1/2/3/4/5 is a family of high-side load switches designed to operate from 1.7V to 5.5V input voltage. The load switch pass element is an internal 67mΩ RDSON P-Channel MOSFET which enables the device to support up to 2A of continuous curr.

Image gallery
