MICRF001 Datasheet - Micrel Semiconductor

QwikRadiotm Receiver/Data Demodulator Advance Information

MICRF001 Features

* Complete UHF receiver on a monolithic chip Frequency range 300 to 440 MHz Typical range over 100 meters with monopole antenna Data rates to 4.8kbps Automatic tuning, no manual adjustment No Filters or Inducto

MICRF001 General Description

The MICRF001 is a single chip OOK (ON-OFF Keyed) Receiver IC for remote wireless applications, employing Micrel’s latest QwikRadiotm technology. This device is a true “antenna-in, dataout” monolithic device. All RF and IF tuning is accomplished automatically within the IC, which eliminates manual tu.

MICRF001 Datasheet (97.69 KB)

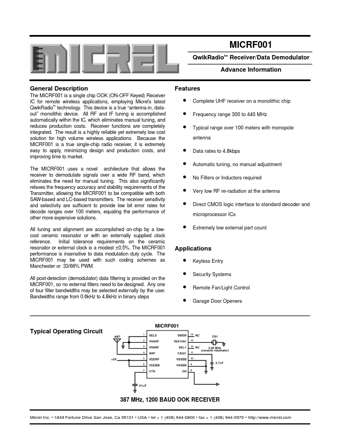

MICRF001 Datasheet Preview — Preview of MICRF001 PDF

Datasheet Details

Part number:

MICRF001

Manufacturer:

Micrel Semiconductor

File Size:

97.69 KB

Description:

Qwikradiotm receiver/data demodulator advance information.
