MICRF007 Datasheet - Micrel Semiconductor

MICRF007 QwikRadio Low-Power UHF Receiver

The MICRF007 is a single chip, ON-OFF Keyed (ASK/OOK) Receiver for remote wireless applications, employing Micrel’s latest QwikRadio® technology.This device is a true “antenna-in to data-out” monolithic device. All RF and IF tuning is accomplished automatically within the IC, which eliminates manual.

MICRF007 Features

* make the MICRF007 ideal for low and ultra-low power applications, such as RKE and RFID. All post-detection (demodulator) data filtering is provided on the MICRF007, so no external baseband filters are required. The demodulator filter bandwidth is fixed at 2.5kHz. Data rates up to 3.2kbps NRZ may be used

MICRF007-MicrelSemiconductor.pdf

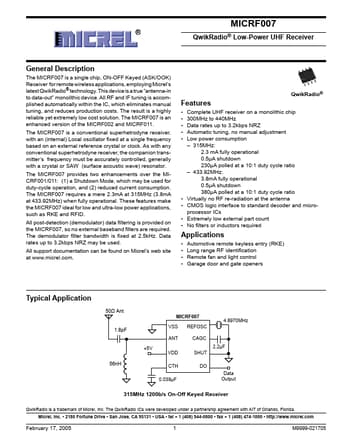

Preview of MICRF007 PDF
MICRF007 Datasheet Preview Page 2 MICRF007 Datasheet Preview Page 3

Datasheet Details

Part number:

MICRF007

Manufacturer:

Micrel Semiconductor

File Size:

528.65 KB

Description:

Qwikradio low-power uhf receiver.
