MICRF102 Datasheet - Micrel Semiconductor

UHF ASK Transmitter

MICRF102 Features

* QwikRadio™

* Complete UHF transmitter on a monolithic chip

* Frequency range 300MHz to 470MHz

* Data rates to 20kbps

* Automatic antenna alignment, no manual adjustment

* Low external part count

* Low standby current

MICRF102 General Description

The MICRF102 is a single chip Transmitter IC for remote wireless applications. The device employs Micrel’s latest QwikRadio™ technology. This device is a true “data-in, antennaout” monolithic device. All antenna tuning is accomplished automatically within the IC which eliminates manual tuning, and r.

MICRF102 Datasheet (336.31 KB)

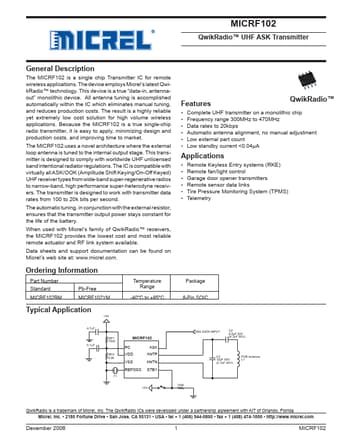

MICRF102 Datasheet Preview — Preview of MICRF102 PDF

Datasheet Details

Part number:

MICRF102

Manufacturer:

Micrel Semiconductor

File Size:

336.31 KB

Description:

Uhf ask transmitter.
