MICRF500 Datasheet, Transceiver, Micrel Semiconductor

MICRF500 Features

  • Transceiver
  • Frequency range: 700MHz to 1100MHz Modulation: FSK RF output power: 10dBm Sensitivity (19.2k bauds, BER=10-3):
      –104dBm

PDF File Details

Part number:

MICRF500

Manufacturer:

Micrel Semiconductor

File Size:

176.05kb

Download:

📄 Datasheet

Description:

700mhz to 1.1ghz radiowire rf transceiver. The MICRF500 is a single chip UHF transceiver designed for spread spectrum communication (FHSS) intended for ISM (Industrial, Scienti

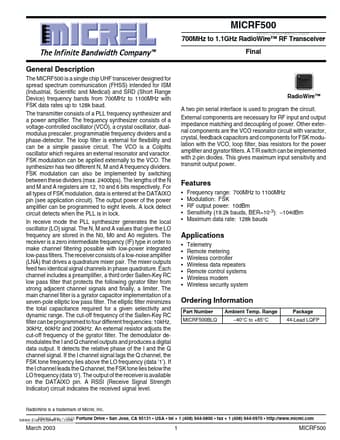

Datasheet Preview: MICRF500 📥 Download PDF (176.05kb)
Page 2 of MICRF500 Page 3 of MICRF500

MICRF500 Application

  • Applications
  • Telemetry Remote metering Wireless controller Wireless data repea
