SY100EL90V

5V/3.3V TRIPLE ECL/LVECL-TOPECL/ LVPECL TRANSLATOR

SY100EL90V Features

* s 3.3V and 5V power supply options s 500ps propagation delay s Fully differential design s Supports both standard and low voltage operation s Available in 20-pin SOIC package DESCRIPTION The SY100EL90V is a triple ECL/LVECL-to-PECL/ LVPECL translator. The device can translate over all combinations

SY100EL90V General Description

The SY100EL90V is a triple ECL/LVECL-to-PECL/ LVPECL translator. The device can translate over all combinations of supply voltages: -5V ECL to 5V PECL, -5V ECL to 3.3V LVPECL, -3.3V LVECL to 5V PECL or -3.3V LVECL to 3.3V LVPECL. A VBB output is provided for interfacing with single ended ECL signals.

SY100EL90V Datasheet (53.85 KB)

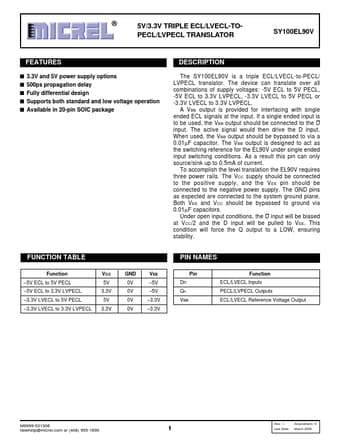

Preview of SY100EL90V PDF

Datasheet Details

Part number:

SY100EL90V

Manufacturer:

Micrel Semiconductor

File Size:

53.85 KB

Description:

5v/3.3v triple ecl/lvecl-topecl/ lvpecl translator.
