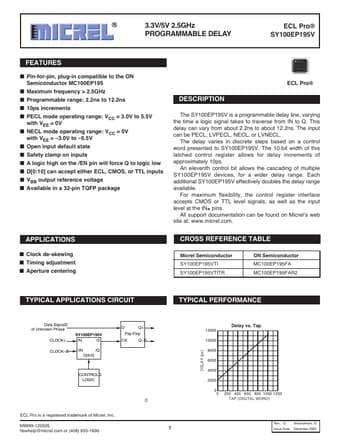

SY100EP195V
FEATURES
- Pin-for-pin, plug-in patible to the ON Semiconductor MC100EP195
- Maximum frequency > 2.5GHz
- Programmable range: 2.2ns to 12.2ns
- 10ps increments
- PECL mode operating range: VCC = 3.0V to 5.5V with VEE = 0V
- NECL mode operating range: VCC = 0V with VEE =
- 3.0V to
- 5.5V
- Open input default state
- Safety clamp on inputs
- A logic high on the /EN pin will force Q to logic low
- D[0:10] can accept either ECL, CMOS, or TTL inputs
- VBB output reference voltage
- Available in a 32-pin TQFP package
ECL Pro®
DESCRIPTION
The SY100EP195V is a programmable delay line, varying the time a logic signal takes to traverse from IN to Q. This delay can vary from about 2.2ns to about 12.2ns. The input can be PECL, LVPECL, NECL, or LVNECL.
The delay varies in discrete steps based on a control word presented to SY100EP195V. The 10-bit width of this latched control register allows for delay increments of approximately 10ps.
An eleventh control bit allows the cascading of multiple...
