SY10E154 Datasheet, Mux-latch, Micrel Semiconductor

SY10E154 Features

  • Mux-latch s 750ps max. LEN to output s Extended 100E VEE range of
      –4.2V to
      –5.5V s 700ps max. D to output s Differential outputs s Asynchronous Master Reset s Dual

PDF File Details

Part number:

SY10E154

Manufacturer:

Micrel Semiconductor

File Size:

58.67kb

Download:

📄 Datasheet

Description:

5-bit 2:1 mux-latch. The SY10/100E154 offer five 2:1 multiplexers followed by latches with differential outputs, designed for use in new, high-performance

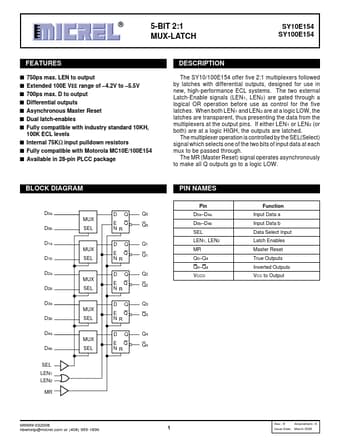

Datasheet Preview: SY10E154 📥 Download PDF (58.67kb)
