SY10E156

3-BIT 4:1 MUX-LATCH

SY10E156 Features

* s s s s s s s 900ps max. D to output Extended 100E VEE range of

* 4.2V to

* 5.5V 800ps max. LEN to output Differential outputs Asynchronous Master Reset Dual latch enables Fully compatible with industry standard 10KH, 100K ECL levels s Internal 75KΩ input pulldown resistors s Fully com

SY10E156 General Description

The SY10/100E156 offer three 4:1 multiplexers followed by latches with differential outputs, designed for use in new, high-performance ECL systems. The two external latch enable signals (LEN1 and LEN2) are gated through a logical OR operation before use as control for the three latches. When both LE.

SY10E156 Datasheet (60.88 KB)

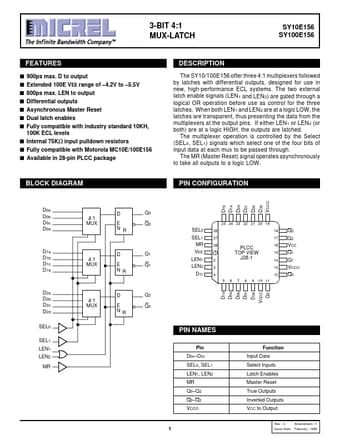

Preview of SY10E156 PDF

Datasheet Details

Part number:

SY10E156

Manufacturer:

Micrel Semiconductor

File Size:

60.88 KB

Description:

3-bit 4:1 mux-latch.
