SY10E452, SY100E452 Datasheet - Micrel Semiconductor

SY10E452 5-BIT DIFFERENTIAL REGISTER

The SY10/100E452 are 5-bit differential registers with differential data (inputs and outputs) and clock. The registers are triggered by a positive transition of the positive clock (CLK) input. A high on the Master Reset (MR) asynchronously resets all registers so that the Q outputs go LOW. The diffe.

SY10E452 Features

* s Differential D, CLK and Q s Extended 100E VEE range of

* 4.2V to

* 5.5V s VBB output for single-ended use s 1100MHz min. toggle frequency s Asynchronous Master Reset s Fully compatible with Motorola MC10E/100E452 s Available in 28-pin PLCC package BLOCK DIAGRAM D0 D0 D1 D1 D2 D2 D3

SY100E452_MicrelSemiconductor.pdf

This datasheet PDF includes multiple part numbers: SY10E452, SY100E452. Please refer to the document for exact specifications by model.

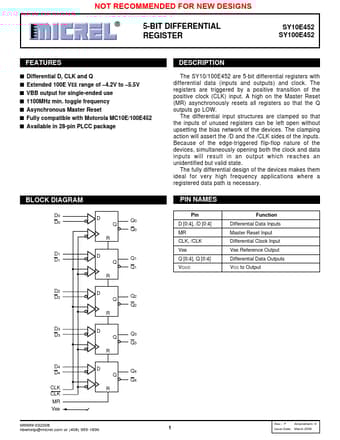

SY10E452 Datasheet Preview Page 2 SY10E452 Datasheet Preview Page 3

Datasheet Details

Part number:

SY10E452, SY100E452

Manufacturer:

Micrel Semiconductor

File Size:

86.10 KB

Description:

5-bit differential register.

Note:

This datasheet PDF includes multiple part numbers: SY10E452, SY100E452.
Please refer to the document for exact specifications by model.
