SY88149CL

PECL Limiting Post Amplifier

SY88149CL Features

* ∑ Single 3.3V power supply ∑ Fast SD enable/disable time ∑ 622Mbps to 1.25Gbps operation ∑ Low-noise PECL data outputs ∑ High-gain SD ∑ Chatter-free Open-Collector TTL signal detect (SD) output with internal 4.75kΩ pull-up resistor ∑ TTL EN input ∑ Programmable SD level set (SDLVL) ∑ Available in a

SY88149CL General Description

The SY88149CL is a high-sensitivity limiting post amplifier designed for use in fiber-optic receivers. These devices connect to typical transimpedance amplifiers (TIAs). The linear signal output from TIAs can contain significant amounts of noise and may vary in amplitude over time. The SY88149CL qua.

SY88149CL Datasheet (301.97 KB)

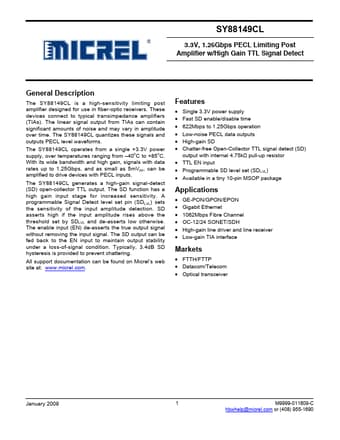

Preview of SY88149CL PDF

Datasheet Details

Part number:

SY88149CL

Manufacturer:

Micrel Semiconductor

File Size:

301.97 KB

Description:

Pecl limiting post amplifier.
