SY8816 - Synchronous Step Down Regulator

SY8816 Description

SY8816 High Efficiency 6V, 6A, 1.2MHz Synchronous Step Down Regulator General .
SY8816 is a high efficiency high frequency synchronous step down DC/DC regulator capable of delivering up to 6A output current.

SY8816 Features

* Low RDS(ON) for Internal Switches (Top/Bottom): 35/15 mΩ
* 2.75-6V Input Voltage Range
* 1.2 MHz Switching Frequency Minimizes the External Components
* Internal Soft-start Limits the Inrush Current
* Up to 94% Efficiency
* 6A Continuous Output Current Capability
* Shut

SY8816 Applications

* High Definition Set Top Box
* LCD TV
* Notebook PC Typical Applications RPG:100kΩ VIN:2.75~6.0V Ce + CIN: 22µF L: 0.47µH PG IN LX SY8816 EN FB REN: 1MΩ GND RH: 100kΩ RL: 49.9kΩ Figure 1. Schematic Diagram VOUT:1.8V Cff: 22pF COUT: 22µF
* 2 Efficiency (%) 100 95 9

📥 Download Datasheet

Preview of SY8816 PDF

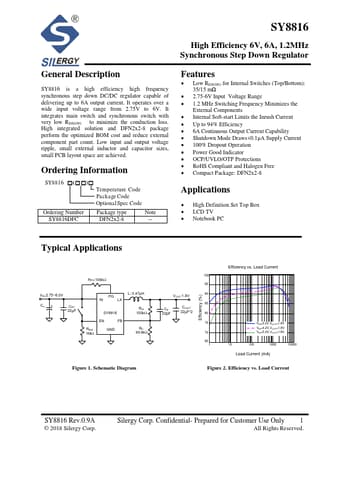

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SY8816
Manufacturer
Silergy
File Size
603.12 KB
Datasheet
SY8816-Silergy.pdf
Description
Synchronous Step Down Regulator
