SY8805A Datasheet, Regulator, Silergy

SY8805A Features

• Regulator
• Low RDS(ON) for internal switches (top/bottom): 35/15 mohm
• 3-5.5V input voltage range
• 1 MHz switching frequency minimizes the external components

PDF File Details

Part number:

SY8805A

Manufacturer:

Silergy

File Size:

388.96kb

Download:

📄 Datasheet

Description:

5a synchronous step down regulator. The SY8805A is a high-efficiency 1 MHz synchronous step-down DC-DC regulator, Current Mode Control IC capable of delivering up to 5A

SY8805A Application

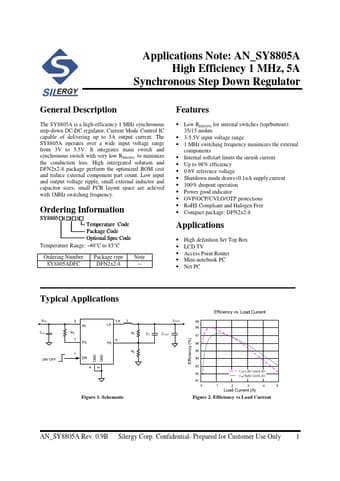

• Applications Note: AN_SY8805A High Efficiency 1 MHz, 5A Synchronous Step Down Regulator General Description The SY8805A is a high-efficiency 1 MHz

TAGS

SY8805A

Silergy
