SY8881 1A Synchronous Step Down Regulator

Silergy

Description

Application Note: AN_SY8881 High Efficiency 2.5MHz, 1A Synchronous Step Down Regulator General .
SY8881 is a high efficiency 2.

📥 Download Datasheet

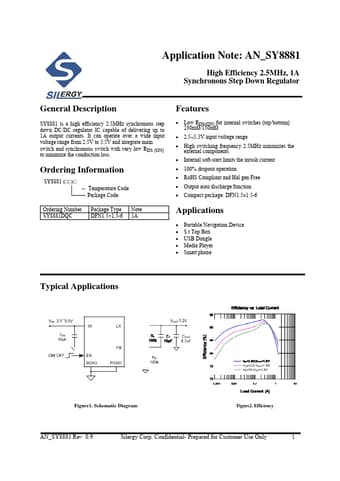

SY8881 Datasheet Preview — Preview of SY8881 PDF

Datasheet Specifications

Part number: SY8881
Manufacturer: Silergy
File Size: 771.02 KB
Datasheet: SY8881-Silergy.pdf
Description: 1A Synchronous Step Down Regulator

Features

* Low RDS(ON) for internal switches (top/bottom) 230mΩ/150mΩ
* 2.5~5.5V input voltage range
* High switching frequency 2.5MHz minimizes the external components
* Internal soft-start limits the inrush current
* 100% dropout operation
* RoHS Compliant an

Applications

* Portable Navigation Device
* S t Top Box
* USB Dongle
* Media Player
* Smart phone Typical Applications Figure1. Schematic Diagram Figure2. Efficiency AN_SY8881 Rev. 0.9 Silergy Corp. Confidential- Prepared for Customer Use Only 1 Pinout (Top View) A
