SY88822V - LASER DIODE DRIVER

Datasheet Summary

Description

The SY88822V is a high speed current switch for driving a semiconductor laser diode in optical transmission applications.

The modulation current (IOUT) is controlled by the current (IRSET) through the external resistor RSET.

Features

  • s Single 3.3V or 5V power supply s Up to 155Mbps operation s Modulation current to 30mA s PECL output enable s Differential PECL inputs s Available in a tiny 10-pin (3mm) MSOP.

📥 Download Datasheet

Datasheet preview – SY88822V

Datasheet Details

Part number SY88822V
Manufacturer Micrel Semiconductor
File Size 52.42 KB
Description LASER DIODE DRIVER
Datasheet download datasheet SY88822V Datasheet
Additional preview pages of the SY88822V datasheet.

📁 Similar Datasheet

  • SY8881 - 1A Synchronous Step Down Regulator (Silergy)
  • SY8883 - Synchronous Step Down Regulator (Silergy)
  • SY8801 - Bluetooth headset smart charging case solution (TPS)
  • SY8802 - Bluetooth headset smart charging case solution (TPS)
  • SY8803 - Bluetooth headset smart charging case solution (TPS)
  • SY8805A - 5A Synchronous Step Down Regulator (Silergy)
  • SY8810 - Bluetooth headset smart charging case solution (TPS)
  • SY8812 - Bluetooth headset charging case solution (TPS)
  • SY88149HL - 3.3V 1.25Gbps Burst-Mode Limiting Amplifier (MICREL)
  • SY8815 - Bluetooth headset charging case solution (TPS)
Other Datasheets by Micrel Semiconductor
  • SY88823V - CML LOW-POWER LIMITING POST AMPLIFIER
  • SY88802 - LASER DIODE DRIVER
  • SY88803V - PECL LOW POWER LIMITING POST AMPLIFIER
  • SY88843V - 3.3V/5V 3.2Gbps CML LOW-POWER LIMITING POST AMPLIFIER
  • SY88883V - CML LOW-POWER LIMITING POST AMPLIFIER
  • SY88022AL - 11.3Gbps Laser Diode Driver
  • SY88022L - 11.3Gbps Laser Diode Driver
  • SY88024L - 11.3Gbps VCSEL DRIVER

Full PDF Text Transcription

Click to expand full text

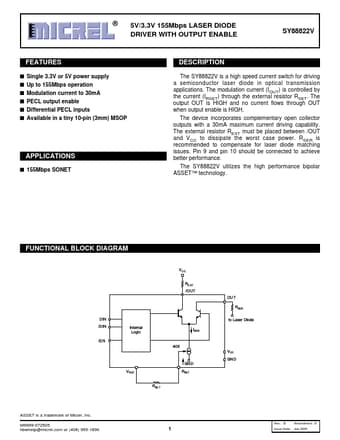

Micrel, Inc. 5V/3.3V 155Mbps LASER DIODE DRIVER WITH OUTPUT ENABLE SY88822V SY88822V FEATURES s Single 3.3V or 5V power supply s Up to 155Mbps operation s Modulation current to 30mA s PECL output enable s Differential PECL inputs s Available in a tiny 10-pin (3mm) MSOP APPLICATIONS s 155Mbps SONET DESCRIPTION The SY88822V is a high speed current switch for driving a semiconductor laser diode in optical transmission applications. The modulation current (IOUT) is controlled by the current (IRSET) through the external resistor RSET. The output OUT is HIGH and no current flows through OUT when output enable is HIGH. The device incorporates complementary open collector outputs with a 30mA maximum current driving capability.
