SY88843V

3.3V/5V 3.2Gbps CML LOW-POWER LIMITING POST AMPLIFIER

SY88843V Features

* s Multi-rate up to 3.2Gbps operation s Wide gain-bandwidth product

* 38dB differential gain

* 2GHz 3dB bandwidth s Low noise 50Ω CML data outputs

* 800mVPP output swing

* 60ps edge rates

* 5psRMS typ. random jitter

* 15psPP typ. deterministic jitter s

SY88843V General Description

The SY88843V low-power limiting post amplifier is designed for use in fiber-optic receivers. The device connects to typical transimpedance amplifiers (TIAs). The linear signal output from TIAs can contain significant amounts of noise and may vary in amplitude over time. The SY88843V quantizes these .

SY88843V Datasheet (149.18 KB)

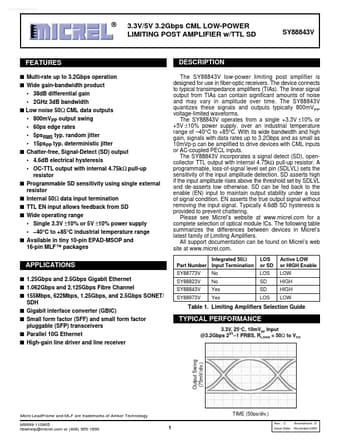

Preview of SY88843V PDF

Datasheet Details

Part number:

SY88843V

Manufacturer:

Micrel Semiconductor

File Size:

149.18 KB

Description:

3.3v/5v 3.2gbps cml low-power limiting post amplifier.
