SY88403BL

CML Low-Power Limiting Post Amplifier

SY88403BL Features

* Multi-rate up to 4.25Gbps operation

* 5mVPP input sensitivity

* Low noise 50Ω CML data outputs

* 800mVpp output swing

* 60ps edge rates

* 1psRMS typ. random jitter

* 10psPP typ. deterministic jitter

* Chatter-free Loss-of-Signal (LOS)

SY88403BL General Description

The SY88403BL is a low-power limiting post amplifier optimized for copper applications. The device connects to typical transimpedance amplifiers (TIAs). The linear signal output from TIAs can contain significant amounts of noise and may vary in amplitude over time. The SY88403BL quantizes these sign.

SY88403BL Datasheet (460.60 KB)

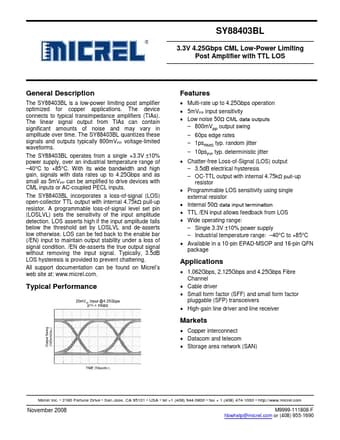

Preview of SY88403BL PDF

Datasheet Details

Part number:

SY88403BL

Manufacturer:

Micrel Semiconductor

File Size:

460.60 KB

Description:

Cml low-power limiting post amplifier.
