SY88953L 3.3V 10.7Gbps CML LIMITING POST AMPLIFIER

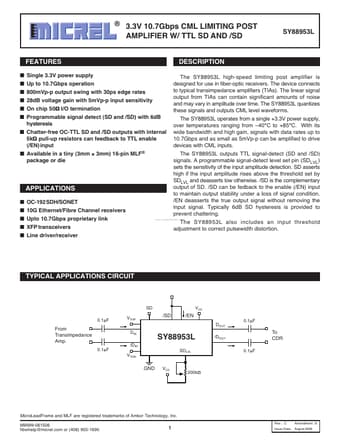

📥 Download Datasheet  Datasheet Preview Page 1

Description

Micrel, Inc.3.3V 10.7Gbps CML LIMITING POST AMPLIFIER W/ TTL SD AND /SD .
SY88953L SY88953L FEATURES. Single 3.

📥 Download Datasheet

Preview of SY88953L PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
SY88953L
Manufacturer
Micrel Semiconductor
File Size
805.47 KB
Datasheet
SY88953L_MicrelSemiconductor.pdf
Description
3.3V 10.7Gbps CML LIMITING POST AMPLIFIER

Features

* Single 3.3V power supply Up to 10.7Gbps operation 800mVp-p output swing with 30ps edge rates 28dB voltage gain with 5mVp-p input sensitivity On chip 50Ω I/O termination Programmable signal detect (SD and /SD) with 6dB hysteresis
* Chatter-free OC-TTL SD and /S

Applications

* OC-192 SDH/SONET 10G Ethernet/Fibre Channel receivers Upto 10.7Gbps proprietary link XFP transceivers Line driver/receiver The SY88953L high-speed limiting post amplifier is designed for use in fiber-optic receivers. The device connects to typical transimpedance amplif
