DSC8002

Programmable Low-Power CMOS Oscillator

DSC8002 Features

* Frequency Range: 1 to 150MHz

* Exceptional Stability over Temperature o ±25 PPM, ±50 PPM

* Operating voltage o 1.8 to 3.3V (nominal) o 1.65 to 3.60V (absolute max)

* Operating Temperature Range o Industrial -40ºC to 85ºC o Ext. Commercial -20ºC to 70ºC o Commercial 0ºC to 70ºC

DSC8002 General Description

The DSC8002 is a programmable MEMS based PureSilicon™ Oscillator. Using the DragonFly™ or TimeFlash™ handheld programmer, the end user can program the DSC8002 within seconds to any frequency from 1 to 150MHz in increments of 100Hz (up to four decimal point resolution). The nominal operational range .

DSC8002 Datasheet (614.57 KB)

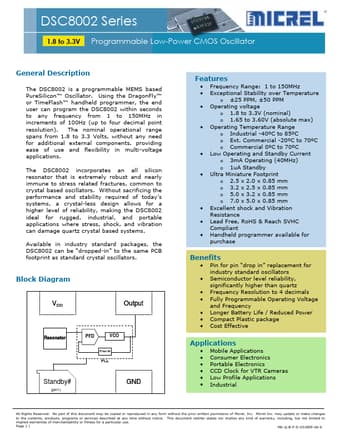

Preview of DSC8002 PDF

Datasheet Details

Part number:

DSC8002

Manufacturer:

Micrel

File Size:

614.57 KB

Description:

Programmable low-power cmos oscillator.
