DSC8102 Datasheet, Oscillator, Micrel

DSC8102 Features

  • Oscillator
  • Low RMS Phase Jitter: <1 ps (typ)
  • High Stability: ±10, ±25, ±50 ppm
  • Wide Temperature Range o Industrial: -40° to 85° C o Ext. commercial: -20° to 70° C

PDF File Details

Part number:

DSC8102

Manufacturer:

Micrel

File Size:

638.89kb

Download:

📄 Datasheet

Description:

Programmable low-jitter precision lvpecl oscillator. The DSC8102 & DSC8122 series of high performance field-programmable oscillators utilizes a proven silicon MEMS technology to prov

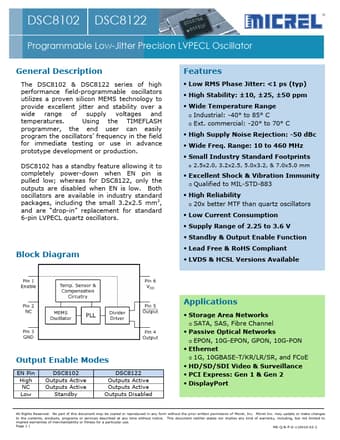

Datasheet Preview: DSC8102 📥 Download PDF (638.89kb)
Page 2 of DSC8102 Page 3 of DSC8102

DSC8102 Application

  • Applications
  • Storage Area Networks o SATA, SAS, Fibre Channel
  • Passive Optical Networks o EPON, 10G-EPON, GPON, 10G-PON
