PT4102

Step-up White LED Driver

PT4102 Features

* APPLICATIONS

* Built-in 40V Power MOSFET

* Drives Up to 8 Series White LEDs from 3.6V

* Up to 87% Efficiency

* 1.2MHz Fixed Switching Frequency

* Low Feedback Voltage:104mV for E-suffix, 88mV for S-suffix.

* PWM or DC Dimming

* Current Limit

PT4102 General Description

The PT4102 is a step-up DC/DC converter designed for driving up to 8 white LEDs in series from a single cell Lithium Ion battery with constant current. Because it directly regulates output current, the PT4102 is ideal for driving light emitting diodes (LEDs) whose light intensity is proportional to .

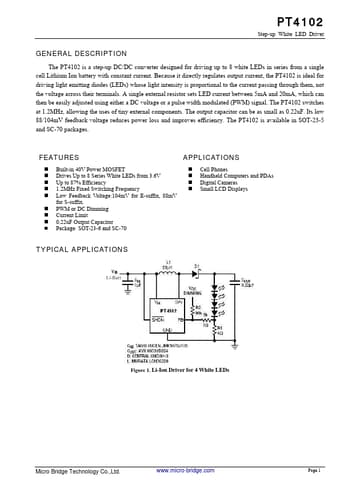

PT4102 Datasheet (479.67 KB)
