PT4103 - White LED Step-Up Converter

Datasheet Summary

Description

The PT4103 is a step-up DC/DC converter designed for driving up to 8 white LEDs in series from a single cell Lithium Ion battery with constant current.

Features

  • z z z z z z z z Drives Up to 5 Series White LEDs from 2.5V Drives Up to 8 Series White LEDs from 3.6V Up to 87% Efficiency 1.2MHz Fixed Switching Frequency Low 104mV Feedback Voltage Open Load Shutdown Soft Start/PWM Dimming SOT23-6 Packages.

📥 Download Datasheet

Datasheet preview – PT4103

Datasheet Details

Part number PT4103
Manufacturer Powtech
File Size 376.74 KB
Description White LED Step-Up Converter
Datasheet download datasheet PT4103 Datasheet
Additional preview pages of the PT4103 datasheet.

📁 Similar Datasheet

  • PT4102 - Step-up White LED Driver (Micro Bridge Technology)
  • PT4110 - Side View and Thin Flat Type Phototransistors (Sharp Electrionic Components)
  • PT4110F - Side View and Thin Flat Type Phototransistors (Sharp Electrionic Components)
  • PT4115 - 30V / 1.2A high dimming ratio LED constant current driver (UMW)
  • PT4115B - Continuous inductor current conduction mode drop Constant current source (LIZE)
  • PT4115C - 500mA high light ratio LED constant current driver (LIZE)
  • PT4115D - Built-in MOS tube 1.2A high power LED constant current driver (HOTCHIP)
  • PT4120 - Side View and Thin Flat Type 2-Phase Output Phototransistor (Sharp Electrionic Components)
  • PT4141 - 100V/2A Single-Stage Linear LED Driver (CR Micro)
  • PT42C - 4-Bit Programmable Delay Line (Kappa Networks)
Other Datasheets by Powtech
  • PT4101 - White LED Step-Up Converter
  • PT4105 - Step-Down Power LED Driver
  • PT4107 - Universal High Brightness LED Driver
  • PT4110 - High Efficiency White LED Driver
  • PT4112 - WLED Driver
  • PT4113 - 480mA LED backlight
  • PT4115 - 1.2A Step-down High Brightness LED Driver
  • PT4115B - 40V/1.2A Buck High Dimming Ratio LED Constant Current Driver

Full PDF Text Transcription

Click to expand full text

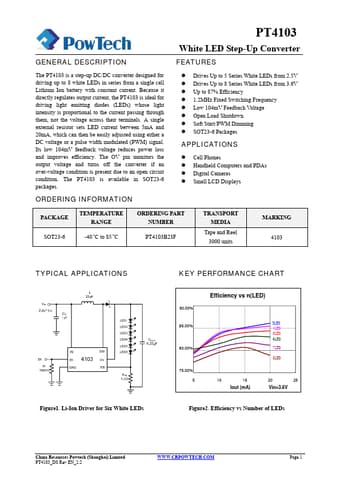

PT4103 White LED Step-Up Converter GENERAL DESCRIPTION The PT4103 is a step-up DC/DC converter designed for driving up to 8 white LEDs in series from a single cell Lithium Ion battery with constant current. Because it directly regulates output current, the PT4103 is ideal for driving light emitting diodes (LEDs) whose light intensity is proportional to the current passing through them, not the voltage across their terminals. A single external resistor sets LED current between 5mA and 20mA, which can then be easily adjusted using either a DC voltage or a pulse width modulated (PWM) signal. Its low 104mV feedback voltage reduces power loss and improves efficiency.
