1N5400GP Datasheet PDF - Micro Commercial Components 3 Amp Glass Passivated Rectifier 50 - 1000 Volts Specs

1N5400GP - 3 Amp Glass Passivated Rectifier 50 - 1000 Volts

Datasheet Summary

Features

omponents 21201 Itasca Street Chatsworth !"# $ % !"# 1N5400GP THRU 1N5408GP 3 Amp Glass Passivated Rectifier 50 - 1000 Volts DO-201AD Low Current Leakage Metalurgically Bonded Construction Low Forward Voltage High Current Capability Glass Passivated Junction.
Maximum Ratings Operating Temperature: -55 °C to +150°C Storage Temperature: -55°C to +150°C.

Datasheet Details

Part number	1N5400GP
Manufacturer	Micro Commercial Components
File Size	78.35 KB
Description	3 Amp Glass Passivated Rectifier 50 - 1000 Volts
Datasheet	1N5400GP Datasheet

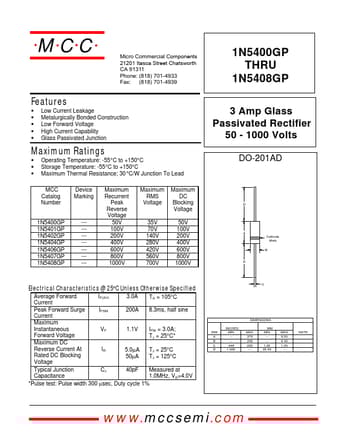

Additional preview pages of the 1N5400GP datasheet.

📁 Similar Datasheet

1N5400GP - 3 Amp. Glass Passivated Junction Rectifier (FAGOR)

1N5400G - 3.0 Amp Glass Passivated Fast Recovery Rectifiers (SeCoS)

1N5400G - GLASS PASSIVATED RECTIFIER (Rectron Semiconductor)

1N5400G - 3.0A GLASS PASSIVATED RECTIFIER (Diodes)

1N5400G - Axial-Lead Standard Recovery Rectifier (ON Semiconductor)

1N5400G - Glass Passivated Rectifiers (Taiwan Semiconductor)

1N5400G - Glass Passivated Junction Rectifiers (CYStech)

1N5400G - General Purpose Rectifier (Yangzhou Yangjie)

1N5400G-K - 50V - 1000V Glass Passivated Rectifier (Taiwan Semiconductor)

1N5400GR - 3Amp Glass Passivated Rectifiers (SeCoS)

Full PDF Text Transcription

Click to expand full text

MCC Features • • • • • omponents 21201 Itasca Street Chatsworth !"# $ % !"# 1N5400GP THRU 1N5408GP 3 Amp Glass Passivated Rectifier 50 - 1000 Volts DO-201AD Low Current Leakage Metalurgically Bonded Construction Low Forward Voltage High Current Capability Glass Passivated Junction • • • Maximum Ratings Operating Temperature: -55 °C to +150°C Storage Temperature: -55°C to +150°C Maximum Thermal Resistance; 30 °C/W Junction To Lead Device Marking Maximum Recurrent Peak Reverse Voltage 50V 100V 200V 400V 600V 800V 1000V Maximum RMS Voltage Maximum DC Blocking Voltage 50V 100V 200V 400V 600V 800V 1000V MCC Catalog Number D 1N5400GP 1N5401GP 1N5402GP 1N5404GP 1N5406GP 1N5407GP 1N5408GP --------------- 35V 70V 140V 280V 420

Published: Mar 23, 2005 |
