1N5400G, Glass Passivated Rectifiers

1N5400G * 1N5408G Taiwan Semiconductor 3A, 50V - 1000V Standard Rectifier .
only.

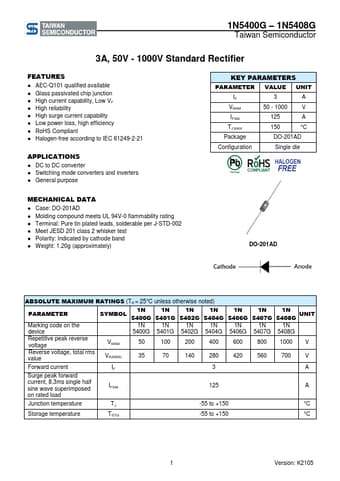

datasheet Preview Page 1 from Datasheet4u.com

1N5400G-TaiwanSemiconductor.pdf

1N5400G Datasheet Preview — Preview of 1N5400G PDF

Datasheet Details

Part number:

1N5400G

Manufacturer:

Taiwan Semiconductor

File Size:

380.05 KB

Description:

Glass Passivated Rectifiers

Features

* AEC-Q101 qualified available
* Glass passivated chip junction
* High current capability, Low VF
* High reliability
* High surge current capability
* Low power loss, high efficiency
* RoHS Compliant

Applications

* DC to DC converter
* Switching mode converters and inverters
* General purpose KEY PARAMETERS PARAMETER VALUE UNIT IF 3 A VRRM 50 - 1000 V IFSM 125 A TJ MAX 150 °C Package DO-201AD Configuration Single die MECHANICAL DATA
* Case: DO-201AD
* Molding compound me
