1N5400G-K 50V - 1000V Glass Passivated Rectifier

1N5400G-K Description

1N5400G-K * 1N5408G-K Taiwan Semiconductor 3A, 50V - 1000V Standard Rectifier .
only.

1N5400G-K Features

* Glass passivated chip junction
* High current capability, Low VF
* High reliability
* High surge current capability
* Low power loss, high efficiency
* RoHS Compliant

1N5400G-K Applications

* DC to DC converter
* Switching mode converters and inverters
* General purpose KEY PARAMETERS PARAMETER VALUE UNIT IF VRRM 3 A 50 - 1000 V IFSM TJ MAX Package 125 A 150 °C DO-201AD Configuration Single die MECHANICAL DATA
* Case: DO-201AD
* Molding compound meets

📥 Download Datasheet

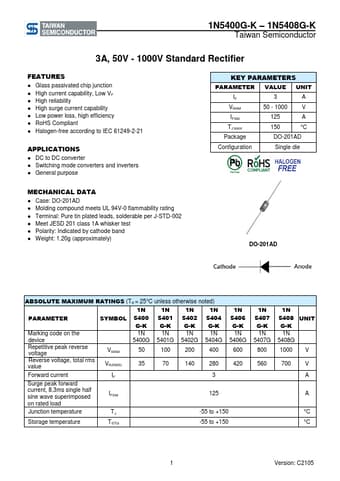

Preview of 1N5400G-K PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
1N5400G-K
Manufacturer
Taiwan Semiconductor
File Size
378.23 KB
Datasheet
1N5400G-K-TaiwanSemiconductor.pdf
Description
50V - 1000V Glass Passivated Rectifier
