UF4007GP - 1.0 Amp Glass Passivated Ultra Fast Recovery Rectifier

Product Overview

Micro Commercial Components

📥 Download Datasheet

UF4007GP 1.0 Amp Glass Passivated Ultra Fast Recovery Rectifier by Micro Commercial Components - Datasheet Preview — Datasheet preview – UF4007GP

Datasheet Details

Part number	UF4007GP
Manufacturer	Micro Commercial Components
File Size	1.03 MB
Description	1.0 Amp Glass Passivated Ultra Fast Recovery Rectifier
Datasheet	UF4007GP Datasheet
Note	This datasheet PDF includes multiple part numbers: UF4007GP, UF4002GP. Please refer to the document for exact specifications by model.

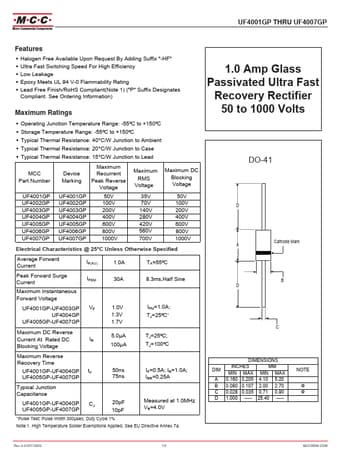

Additional preview pages of the UF4007GP datasheet.

Product details

Features

Halogen Free Available Upon Request By Adding Suffix "-HF".
Ultra Fast Switching Speed For High Efficiency.
Low Leakage.
Epoxy Meets UL 94 V-0 Flammability Rating.
Lead Free Finish/RoHS Compliant(Note 1) ("P" Suffix Designates Compliant. See Ordering Information) Maximum Ratings.
Operating Junction Temperature Range: -55⁰C to +150⁰C.
Storage Temperature Range: -55⁰C to +150⁰C.
Typical Thermal Resistance: 40°C/W Junction t.
